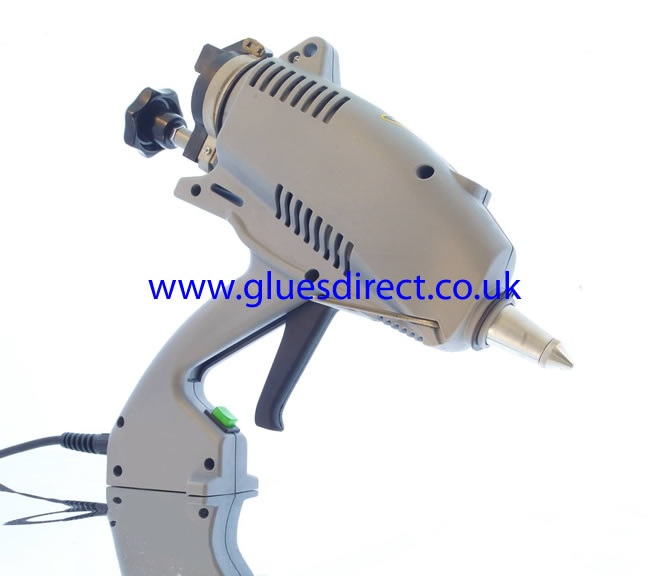

MS200 Hot Melt Applicator
The MS200 applies hot melt in the form of 43mm slugs, granules and pillows. It does not require compressed air and with 600 watts power it is ready to go in 5 minutes. Application temperature is adjustable up to 200 deg c.
A unique ergonomic shape and an adjustable trigger enable the user to work comfortably and without fatigue.
An integrated magnetic foot provides a stable base on magnetic surfaces.
A wire stand provides a secure stand on non magnetic surfaces. In combination with a variety of available nozzles the MS200 serves almost every application conveniently, flexibly and professionally.
Technical Data |
|
|
|
Weight of the Gun |
1220 g |
Power Supply |
230V (50Hz) / 120V (60 Hz) on request |
Power Consumption |
600 Watt |
Temperature Control |
Thermostat |
Temperature Limitation |
Temperature Controller |
Operating Temperature |
20 - 200°c |
Heat-Up Time |
Approx 5. Min |
Gross Tank Capacity |
250ml |
Length of Electric Cord |
1.8 m |
Recommended Glues |
Hot Melt Granulate, Pillows & 43mm Slugs |
|
|
|
